Titanium is a high-performance metal celebrated for having the highest strength-to-density ratio of any metallic element. From the structural frames of aircraft to biocompatible medical implants, Titanium offers an exceptional combination of low weight, high strength, and total immunity to corrosion in seawater.
Titanium Grade 2 is the commercially pure workhorse known for excellent formability, while Grade 5 (Ti-6Al-4V) is the most widely used alloy, providing significantly higher tensile strength for aerospace components and high-stress mechanical parts.
| Grade | Ti (Titanium) | Al (Aluminum) | V (Vanadium) | Fe (Iron) | O (Oxygen) | C (Carbon) | N (Nitrogen) | H (Hydrogen) |
|---|---|---|---|---|---|---|---|---|
| Titanium Grade 2 | 98.9 min | - | - | 0.30 max | 0.25 max | 0.08 max | 0.03 max | 0.015 max |
| Titanium Grade 5 | 88.0 - 91.0 | 5.5 - 6.75 | 3.5 - 4.5 | 0.40 max | 0.20 max | 0.08 max | 0.05 max | 0.015 max |
| Grade | Tensile Strength (PSI) | Yield Strength (PSI) | Elongation (%) | Hardness (Brinell) | Density (lb/in³) | Strength-to-Weight |
|---|---|---|---|---|---|---|
| Titanium Grade 2 | 50,000 min | 40,000 min | 20% min | 160 - 200 HB | 0.163 | High |
| Titanium Grade 5 | 130,000 min | 120,000 min | 10% min | 300 - 340 HB | 0.160 | Ultra-High |

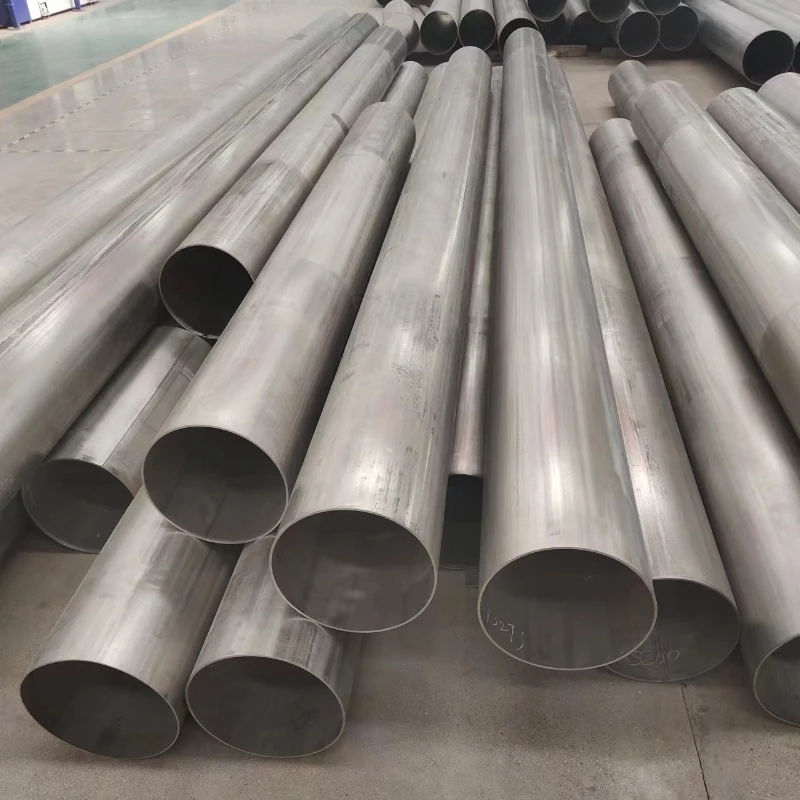

Aerospace & Chemical
High-performance seamless and welded piping solutions. Grade 2 offers superior corrosion resistance for chemical processing, while Grade 5 provides the high strength required for hydraulic systems in aerospace.

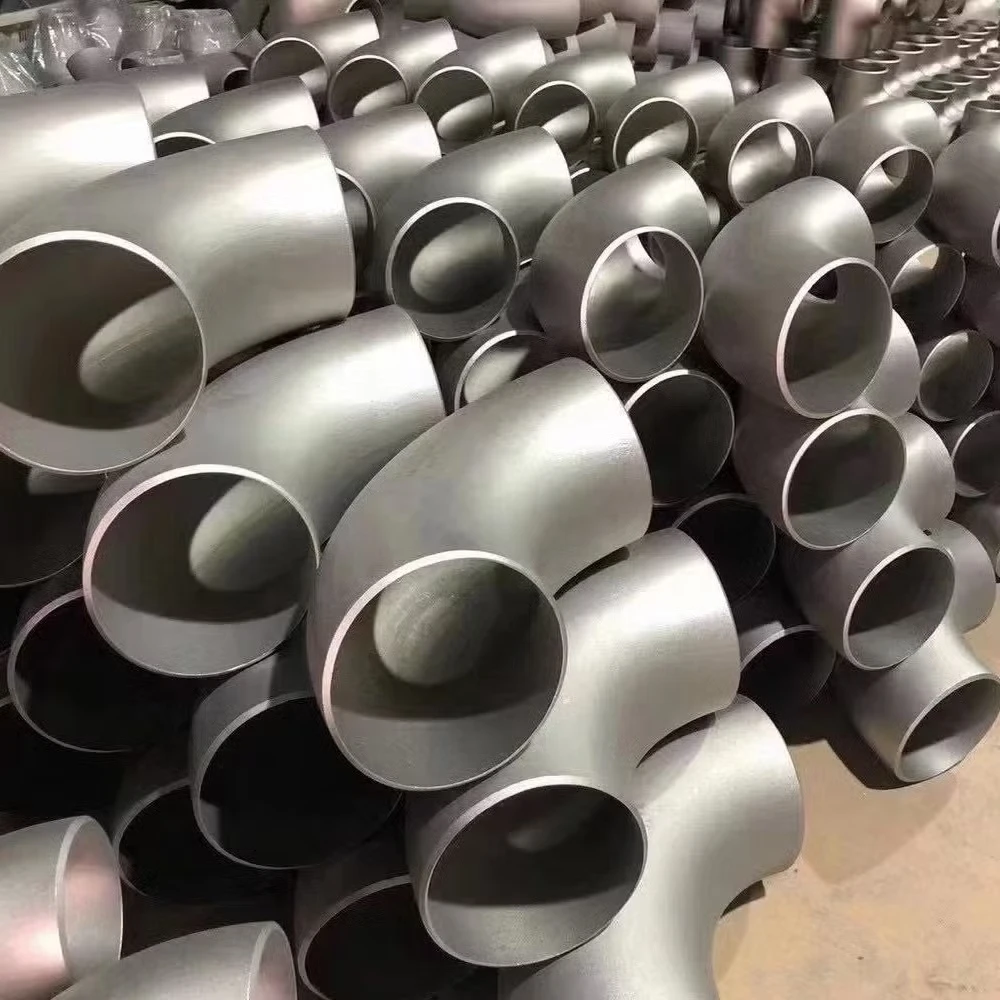

Buttweld / Forged
Precision-engineered elbows, tees, and reducers. These fittings are essential for weight-sensitive applications and environments involving highly oxidizing acids or chlorides.

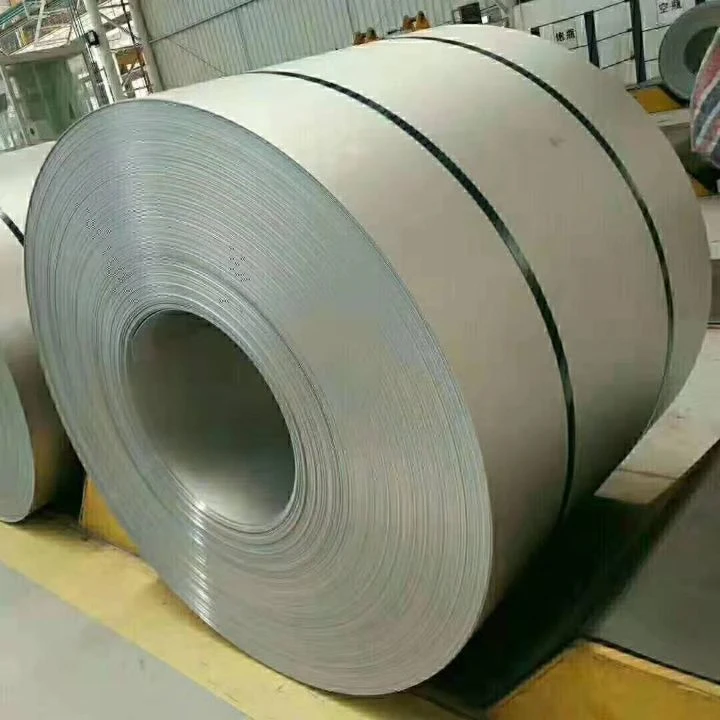

High Strength-to-Weight
Flat-rolled titanium products used in the fabrication of heat exchangers, pressure vessels, and aerospace structural skins. Known for exceptional fatigue resistance.

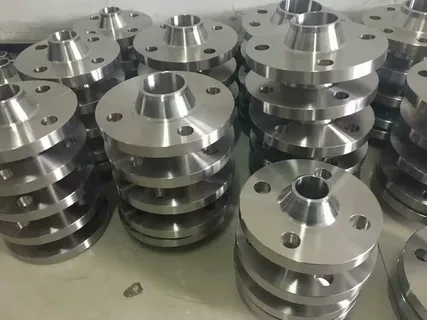

Zero Corrosion Sealing
Forged flanges for high-pressure sealing. Perfectly suited for desalination plants, offshore oil & gas, and medical equipment where purity and durability are paramount.

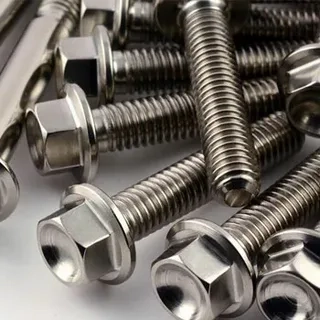

Lightweight Bolting
Critical bolting solutions for racing, aerospace, and marine industries. Titanium bolts provide the strength of steel at nearly half the weight, with complete resistance to salt-water pitting.

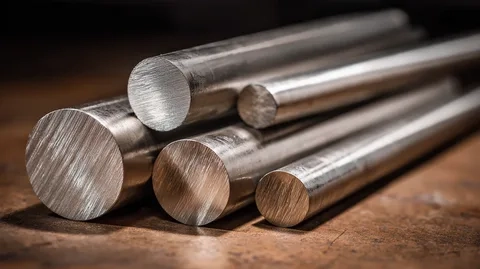

Medical & Engine Quality
High-precision round and hex bars. Grade 5 is widely used for turbine blades and engine parts, while biocompatible grades are used for medical bone screws and dental implants.
