Hastelloy is a premier family of corrosion-resistant superalloys designed to survive where other metals fail. Engineered with high molybdenum and chromium content, these alloys offer supreme resistance to a wide range of severe chemical processing environments, including highly oxidizing and reducing acids.
Hastelloy alloys are the industry standard for chemical processing due to their versatility. Whether facing wet chlorine gas, sulfuric acid, or hydrochloric acid, the metallurgical structure remains stable, preventing localized attack and catastrophic failure.
| Grade | Ni (Nickel) | Mo (Moly) | Cr (Chromium) | Fe (Iron) | W (Tungsten) | Co (Cobalt) |
|---|---|---|---|---|---|---|
| Hastelloy C276 | Balance | 15.0 - 17.0 | 14.5 - 16.5 | 4.0 - 7.0 | 3.0 - 4.5 | 2.5 max |
| Hastelloy C22 | Balance | 12.5 - 14.5 | 20.0 - 22.5 | 2.0 - 6.0 | 2.5 - 3.5 | 2.5 max |
| Hastelloy B2 | Balance | 26.0 - 30.0 | 1.0 max | 2.0 max | - | 1.0 max |
| Grade | Tensile Strength (PSI) | Yield Strength (PSI) | Elongation (%) | Hardness (Rockwell B) |
|---|---|---|---|---|
| Hastelloy C276 | 100,000 min | 41,000 min | 40% min | 100 max |
| Hastelloy C22 | 100,000 min | 45,000 min | 45% min | 100 max |
| Hastelloy B2 | 110,000 min | 51,000 min | 40% min | 100 max |
Corrosion Resistant
Masterfully engineered for handling highly aggressive media including wet chlorine gas, hypochlorite, and chlorine dioxide. Ideal for pharmaceutical and chemical reactors.

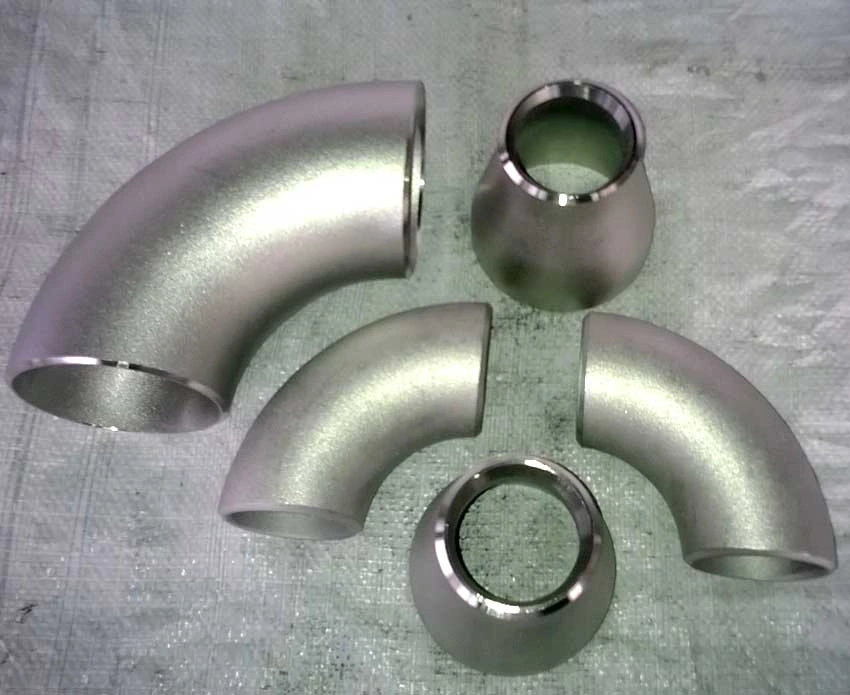

Buttweld / Forged / Tube
Full range of connection components including Buttweld (elbows/tees) for large processing lines, Forged high-pressure fittings, and precision Double Ferrule Tube connectors for instrumentation.

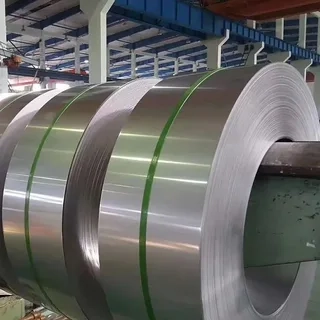

Cold & Hot Rolled
Exceptional flat products used for cladding and fabricating pressure vessels, heat exchangers, and flue gas desulfurization systems where pitting resistance is mandatory.

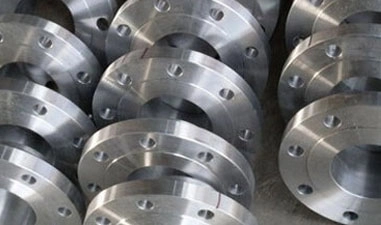

High-Pressure Sealing
Forged sealing solutions engineered for extreme stability in phosphoric acid service and hydrochloric environments. Machined to exact ASME tolerances.

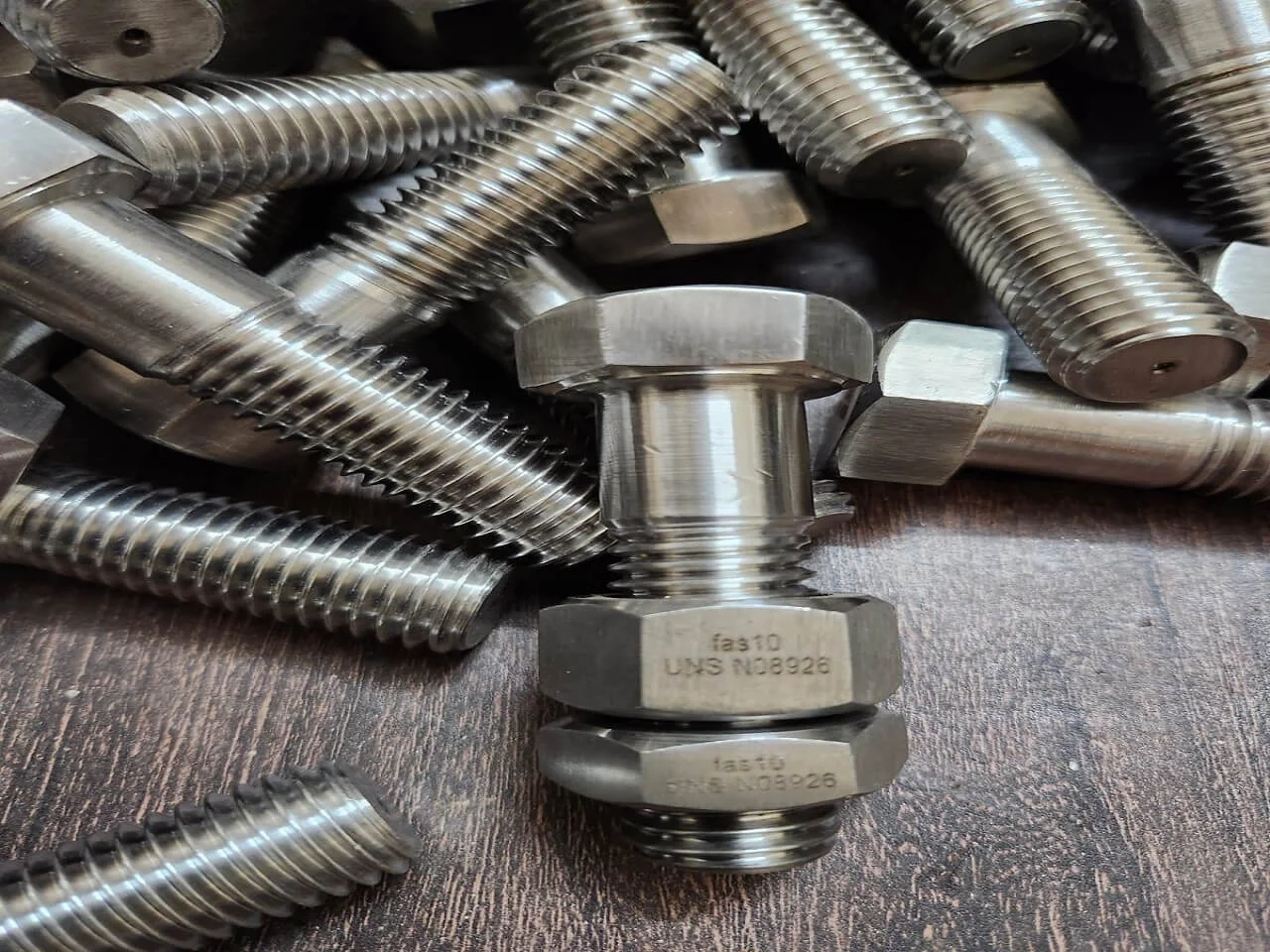

Anti-Corrosive Bolting
Specialized high-strength bolting solutions including stud bolts and heavy hex nuts, designed to prevent loosening and corrosion in chemical pump and valve assemblies.

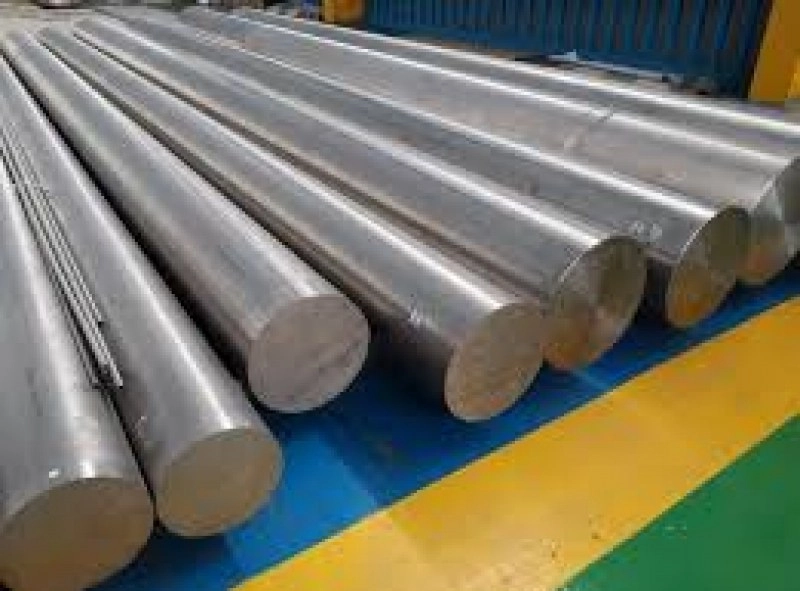

Forged / Ground
Precision-ground round bars and forged shafts designed for rotating equipment in the most corrosive offshore and industrial chemical environments.
