COPPER & BRASS :

Quarter Hard – Hard enough to have some resistance, but soft enough to double seam without cracking.

Half Hard – A temper suitable for punching, blanking and simple forming. Will double seam on the lighter gauges.

Hard – Too stiff to be worked beyond a right angle bend. Used mostly for flat and straight work.

Spring – Hard enough to resume position after a definite deflection. Extra Spring – As hard as brass can be rolled. Used for extraordinarily stiff spring work.

Bending Temper – A special temper used in the manufacture of tubing; just soft enough to take ordinary bends without losing its shape or denting badly, and sufficiently close grained to take a high polish.

Brass Specifications:

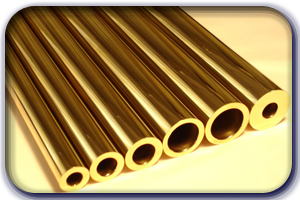

ROUND SEAMLESS YELLOW BRASS TUBE HARD DRAWN
For general fabrication. Manufactured to ASTM B-135.

Outside Diameter Inches	Wall Thickness Inches	Weight Per Ft. Lbs.
3/16	0.032	0.057
1/4	0.035	0.087
5/16	0.035	0.112
3/8	0.035	0.138
7/16	0.042	0.192
1/2	0.035	0.188
5/8	0.035	0.239
3/4	0.035	0.29
7/8	0.035	0.34
1	0.035	0.391
1 1/8	0.035	0.797
1 1/4	0.035	0.492
1 1/8	0.035	0.512
1 1/2	0.035	0.593
1 5/8	0.065	1.170
1 3/4	0.065	1.270
1 7/8	0.12	2.44
2	0.035	0.79
2 1/4	0.12	2.96
2 1/2	0.065	1.83
2 3/4	0.12	3.65
3	0.065	2.21
3 1/4	0.12	4.35
4	0.12	5.39

PIPE – 85% RED BRASS Standard Pipe Size – Commercial Temper
SPEC A.S.T.M. B43-A230

Size in Inches	Outside Diameter	Inside Diameter	Wall Thickness	Weight Per Lin. Ft.	Weight 12' Lengths
1/8	0.405	0.281	0.062	0.253	3.04
1/4	0.54	0.376	0.082	0.447	5.36
3/8	0.675	0.495	0.09	0.627	7.52
1/2	0.84	0.626	0.107	0.934	11.21
3/4	1.05	0.822	0.114	1.27	15.24
1	1.315	1.063	0.126	1.78	21.36
2	2.375	2.063	0.156	4.12	49.44
3	3.5	3.062	0.219	8.56	102.7
4	4.5	4	0.25	12.7	152.4
5	5.562	5.062	0.25	15.8	190.2
6	6.625	6.125	0.25	19	228
8	8.625	8.001	0.312	30.9	370.8
10	10.750	10.020	0.365	45.2	542.4
12	12.750	12.000	0.375	55.3	663.6



EXTRA HEAVY PIPE – 85% RED BRASS Standard Pipe Size – Commercial Temper
SPEC A.S.T.M. B43-A230

Size in Inches	Outside Diameter	Inside Diameter	Wall Thickness	Weight Per Lin. Ft.	Weight 12' Lengths
1/8	0.405	0.205	0.1	0.363	4.36
1/4	0.54	0.294	0.123	0.611	7.33
3/8	0.675	0.421	0.127	0.829	9.95
1/2	0.84	0.542	0.149	1.23	14.76
3/4	1.05	0.736	0.157	1.67	20.04
1	1.315	0.951	0.182	2.46	29.52
2	2.375	1.933	0.221	5.67	68.04
3	3.5	2.892	0.304	11.6	139.20
4	4.5	3.818	341	16.9	202.80
5	5.562	4.812	0.375	23.2	278.40
6	6.625	5.751	0.437	32.2	386.40
8	8.625	7.625	0.5	48.4	580.80
10	10.750	9.750	0.5	61.1	733.20

Copper Specifications:

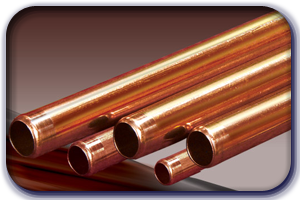

SEAMLESS COPPER TUBE C12200
WATER TUBE ASTM B88, TYPE K, L, M
DWV (DRAINAGE, WASTE & VENT) ASTM B306
RANGE OF SIZES AND WALL THICKNESS

NOMINAL SIZE	OUTSIDE DIAMETER INCHES	WALL THICKNESS INCHES
INCHES	ALL TYPES	TYPE K	TYPE L	TYPE M	TYPE D.W.V.
1/4	0.375	0.035	0.03
3/8	0.5	0.049	0.035	0.025
1/2	0.625	0.049	0.04	0.028
5/8	0.75	0.049	0.042	–
3/4	0.875	0.065	0.045	0.032
1	1.125	0.065	0.05	0.035
2	2.125	0.083	0.07	0.058	0.042
3	3.125	0.109	0.09	0.072	0.045
4	4.125	0.134	0.11	0.095	0.058



C12200 ASTM B280
HARD DRAWN
ACR Tube

Dimensions and Weights

Outside Diameter (Inches)	Wall Thickness (Inches)	Weight (lbs/ft)
1/4	0.028	0.07
3/8	0.03	0.126
1/2	0.035	0.198
5/8	0.04	0.285
3/4	0.042	0.362
7/8	0.045	0.455
1 1/8	0.05	0.655
2 1/8	0.07	1.750
3 1/8	0.09	3.330
4 1/2	0.11	5.380



SOFT SEAMLESS COPPER TUBE
ANNEALED – DEHYDRATED & SEALED
50 Foot Coils (Refrigeration Tube)
Designed primarily for use in refrigeration and air conditioning.
Alloy 122

Outside Diameter Inches	Wall Thickness Inches	Weight Per Ft. Lbs.
1/8	0.03	0.034
3/16	0.03	0.057
1/4	0.03	0.082
5/16	0.032	0.11
3/8	0.032	0.134
1/2	0.032	0.182
5/8	0.032	0.231
3/4	0.035	0.305



ROUND TELLURIUM COPPER ROD
OXYGEN FREE
Hard Drawn
SPEC A.S.T.M. B301-145
Nominal Composition: Copper 99.5%; Tellurium 0.5%; Phosphorus 0.008%
Machinability Rating – 80%

Sizes in Inches	Decimal Equivalent	Weight Per Lin. Ft.	Weight Per 12' Length
1/8	0.125	0.048	0.571
3/16	0.188	0.107	1.28
1/4	0.25	0.19	2.28
5/16	0.312	0.297	3.56
3/8	0.375	0.427	5.12
7/16	0.436	0.581	6.97
1/2	0.5	0.759	9.11
9/16	0.562	0.96	11.52
5/8	0.625	1.19	14.28
11/16	0.688	1.43	17.16
3/4	0.75	1.71	20.52
13/16	0.812	2.00	24.00
7/8	0.875	2.33	28.00
1	1.000	3.04	36.48
2	2.000	12.20	146.4
3	3.000	27.36	327.9



ROUND LEADED COPPER ROD
Hard Drawn
SPEC A.S.T.M. B301-187
Nominal Composition: Copper 99.0%; Lead 1.0%
Machinability Rating – 85%

Sizes in Inches	Decimal Equivalent	Weight Per Lin. Ft.	Weight Per 12' Length
1/8	0.125	0.048	0.571
3/16	0.188	0.107	1.28
1/4	0.25	0.19	2.28
5/16	0.312	0.297	3.56
3/8	0.375	0.428	5.14
7/16	0.438	0.583	7.00
1/2	0.5	0.761	9.13
5/8	0.625	1.19	14.3
3/4	0.75	1.71	20.5
7/8	0.875	2.33	28.0
1	1.000	3.04	36.5
2	2.00	12.2	146
3	3.00	27.4	329
